VACUUM PLOUGH SHEAR REACTOR

Vacuum plough shear reactor

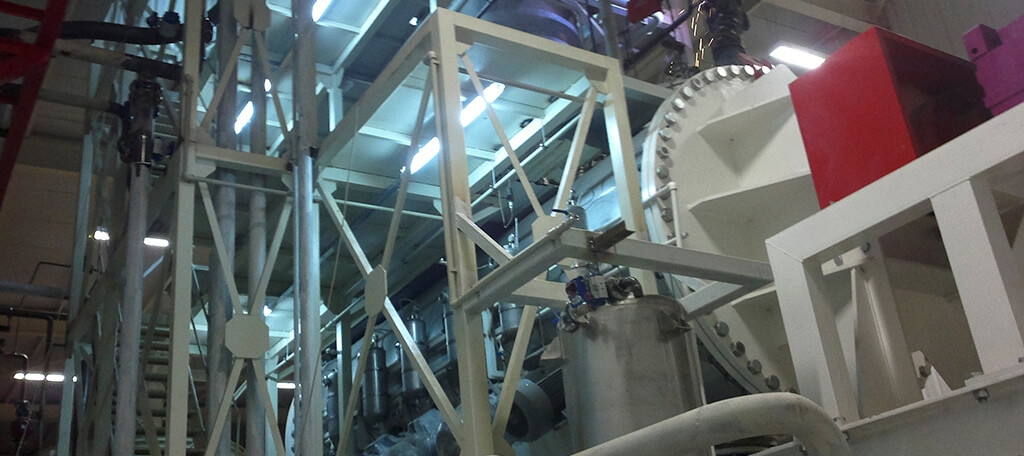

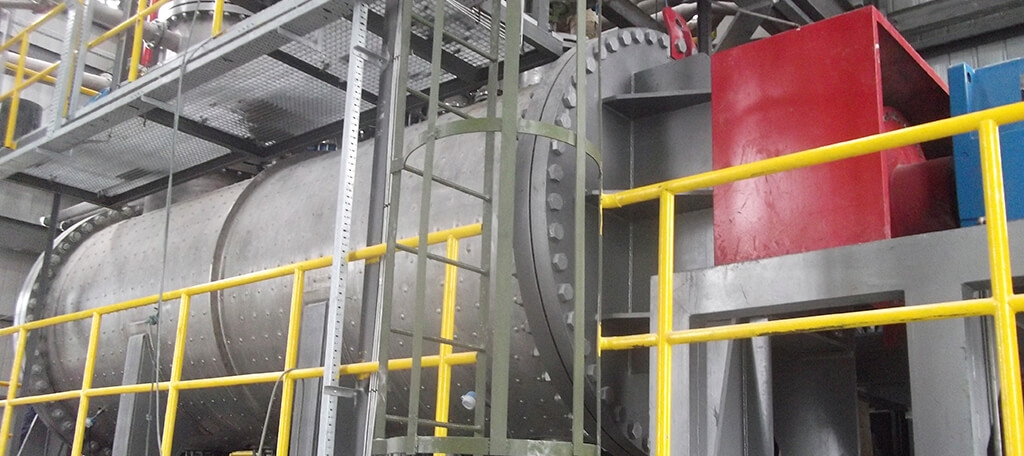

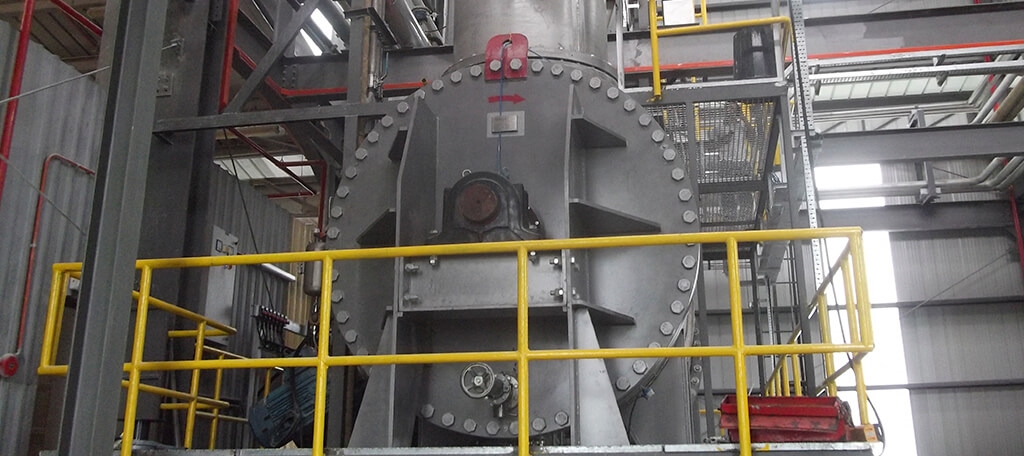

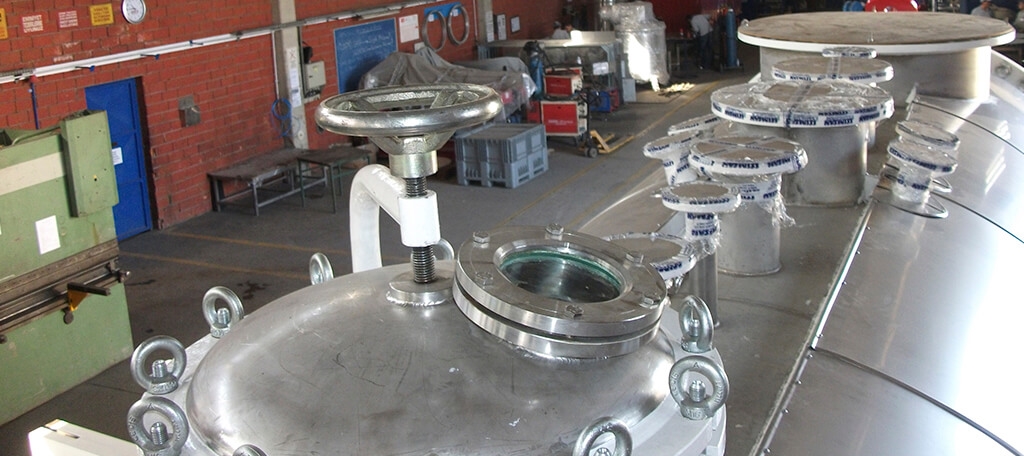

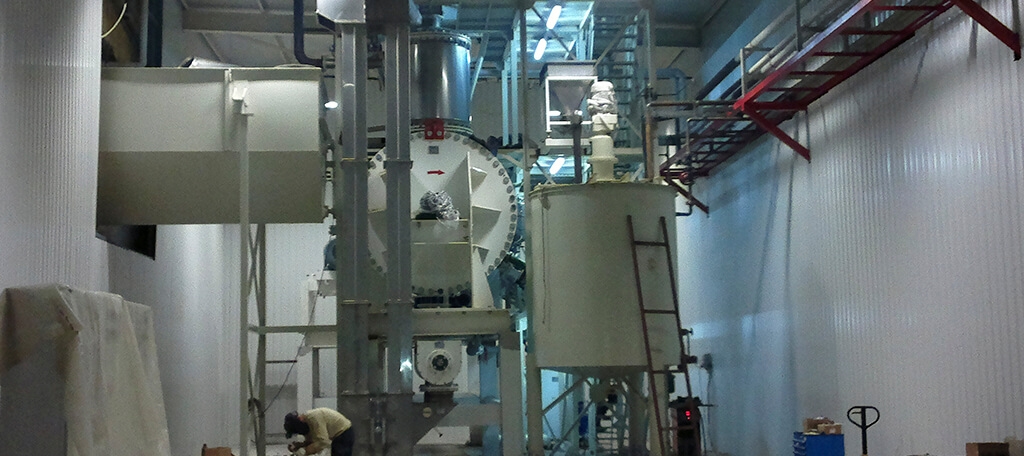

Vacuum reactor (palm fat), 20 m3 with heating or cooling jacket

Vacuum plough shear reactor

Vacuum reactor (palm fat), 20 m3 with heating or cooling jacket

Vacuum plough shear reactor

Vacuum reactor (palm fat), 20 m3 with heating or cooling jacket

Vacuum plough shear reactor

Vacuum reactor (palm fat), 20 m3 with heating or cooling jacket

Vacuum plough shear reactor

Vacuum reactor (palm fat), 20 m3 with heating or cooling jacket

Vacuum plough shear reactor

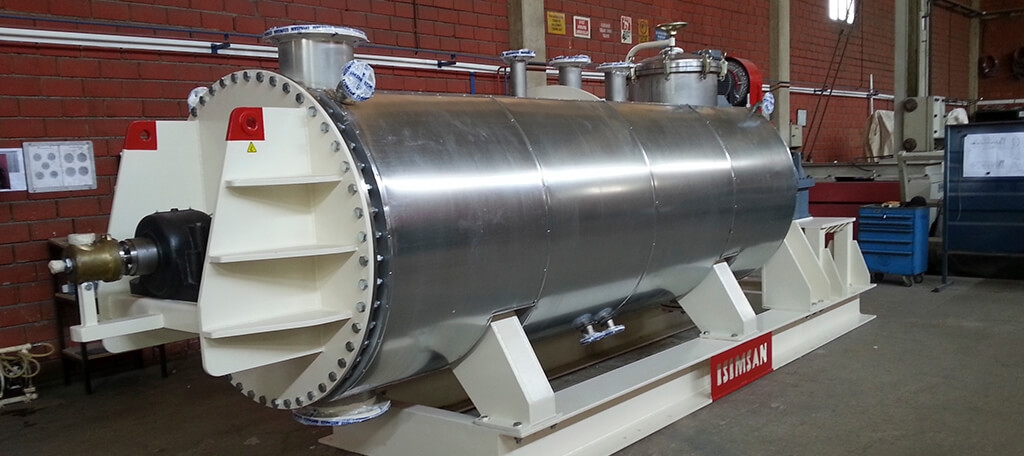

Vacuum reactor (palm fat), 5 m3 with heating or cooling jacket

Vacuum plough shear reactor

Vacuum reactor (palm fat), 5 m3 with heating or cooling jacket

Vacuum plough shear reactor

Vacuum reactor (palm fat), 5 m3 with heating or cooling jacket

Vacuum plough shear reactor

Vacuum reactor (palm fat), 5 m3 with heating or cooling jacket

Contact


ISIMSAN

SALES

+90 (0) 232 - 877 05 82

Offer Form

Vacuum plough shear reactors are suitable for processing pastes, powders and granular products. These reactors are used in chemistry and food industry.

These reactors are single shaft mixers intended for batch processing designed for vacuum and pressure processes. They draw attention with their extremely protective and efficient process technology. The reactors may optionally be equipped with plough type or other types of blades. It is also possible to heat and/or to cool some of them. Complementary components such as cutting rotors, heating and cooling system, and many more details allow these reactors to be used in many different industries. Mixing bodies up to 20 m3 allow production in large batches.

The criteria for choosing the right design are now far beyond purely functional features. The only decisive factor for the quality of the reactors is not the basic suitability for the process. First of all, attention should be paid to design details that are important for hygiene standards, easy cleanability and rapid adaptability to products with different production conditions.

For this reason, design and production are always carried out exclusively by the customer. Take advantage of our experience. Call us for your customized solutions!

Mixing and laboratory testing can be done at Isımsan's own technical center.

Applications:

Foods, animal feeds, chemicals, construction materials, etc.

Design

Body size : 0.1 to 20 m³
Body shape : cylindrical
Material : carbon steel, stainless steel, duplex steel, wear-resistant steel
Surface : painted, brushed, mirror polished
Mixer shaft : single shaft
Rpm : 4 - 82
Pressure max. : 25 bar (may be higher upon request)

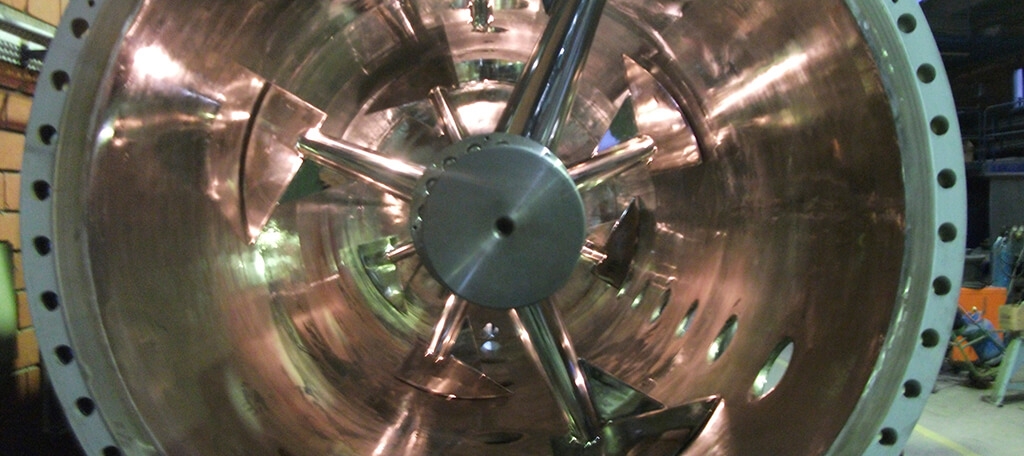

Blades : plough, paddle, etc.
Vacuum generation : pump (up to 730mmHg), ejektor (up to 758mmHg)
Vacuum max. : 760 mmHg
Material thickness : up to 40 mm (may be higher upon request)

Optional parts

  • Sampling valves
  • Mechanical seals
  • Eyeglass with lighting
  • Heating and cooling jacket
  • Internal heated or refrigerated mixers

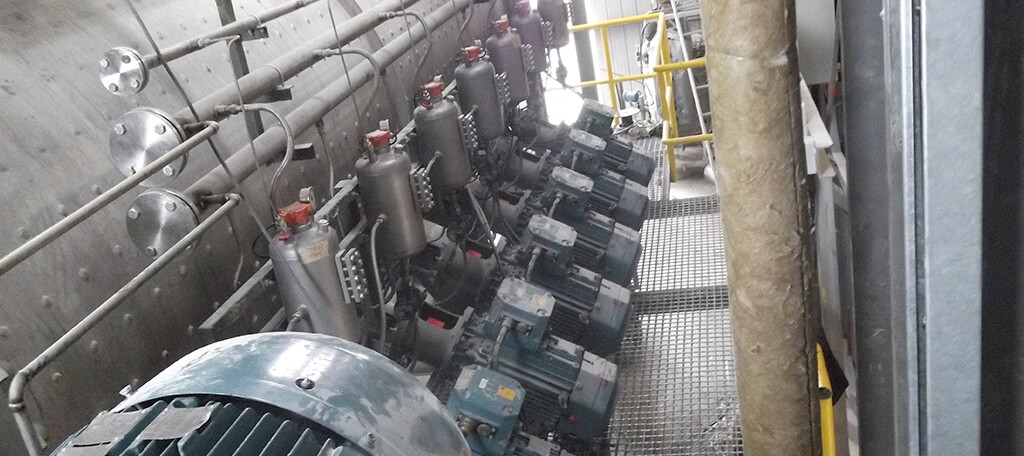

  • High speed cutting rotors
  • Liquid dosing system
  • Pressure-resistant, double-skinned models
  • Various automation sensors
  • Support frame and platform
  • Speed control
  • Remote control
  • etc.

PRODUCT OFFER REQUEST FORM

Online Product Inquiry For your individual product solution we gladly take a first draft including price calculation. You will receive this within a few days. Please use our online product inquiry or contact us directly.

Isımsan - We are there for you

Isımsan manufactures plants individually and according to the following International directives and regulations:

  • CE 2006/42/EG (Machinery Directive)
  • CE 2014/29/EU (Pressure vessel directive)
  • CE 2014/68/EU (Pressure vessel directive)
  • ATEX product line 2014/34/EU
  • EHEDG (European Hygienic Engineering and Design Group)
  • GMP (Good Manufactuning Practise)
  • FDA (U.S. Food & Drug Administration)
  • EAC (EurAsia Conformity)

Further guidelines can be considered after consultation.
Isımsan is certified in terms of quality management (ISO 9001), environmental standards (ISO 14001), welding technology and supervision (ISO 3834 & 14731) and control technology (2006/42/EC).
