The vertical powder mixer can be supplied in different models and sizes and is very suitable for processing of powder and granule mixtures.

The criteria for choosing the right design are now far beyond purely functional features. The only decisive factor for the quality of the mixers is not the basic suitability for the process. First of all, attention should be paid to design details that are important for hygiene standards, easy cleanability and rapid adaptability to products with different production conditions.
Thus, design and production are always carried out exclusively by the customer.

Take advantage of our experience. Call us for your customized solutions!

Mixing and laboratory testing can be done at Isımsan's own technical center.

Applications:

Foods, cosmetics, chemicals, pharmaceuticals, etc.

Design features

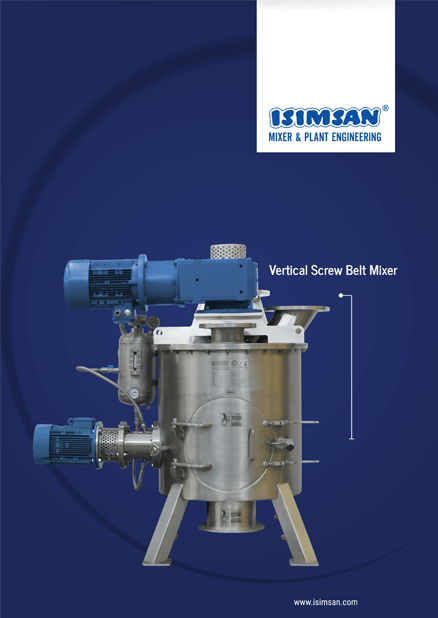

The vertical powder mixer operates at a variable speed. The mix material is conveyed upward at the outer ends of the mixing body, then down again to reach a stream. At this time, the mixture material is rearranged in three dimensions. The mixer body is made of stainless steel. Optionally, it can be manufactured with stands that allow a platform to be mounted. A cover on the body allows the inside to be checked and cleaned. On the floor there is an outlet port which opens manually or pneumatically.

Design

Body size : 0.1 to 40 m³
Body shape : cylindrical
Base shape : flat
Material : stainless steel, nickel alloy
Surface : brushed, polished, mirror polished (Ra <0,2)
Mixer shaft : single shaft
Rpm : 4 - 110
Blades : helical type

Optional parts

  • Sampling valves
  • Eyeglass with lighting
  • Second inspection door
  • Heating & cooling jacket
  • High speed cutting rotors
  • Liquid dosing nozzles
  • Mixing container in single or double-walled design
    (depending on process)
  • Various automation sensors
  • Frame & platform
  • Control panel
  • Speed control
  • Remote control
  • CIP ball
  • CE, ATEX, ...

PRODUCT OFFER REQUEST FORM

Online Product Inquiry For your individual product solution we gladly take a first draft including price calculation. You will receive this within a few days. Please use our online product inquiry or contact us directly.

Isımsan - We are there for you

Isımsan manufactures plants individually and according to the following International directives and regulations:

  • CE 2006/42/EG (Machinery Directive)
  • CE 2014/29/EU (Pressure vessel directive)
  • CE 2014/68/EU (Pressure vessel directive)
  • ATEX product line 2014/34/EU
  • EHEDG (European Hygienic Engineering and Design Group)
  • GMP (Good Manufactuning Practise)
  • FDA (U.S. Food & Drug Administration)
  • EAC (EurAsia Conformity)

Further guidelines can be considered after consultation.
Isımsan is certified in terms of quality management (ISO 9001), environmental standards (ISO 14001), welding technology and supervision (ISO 3834 & 14731) and control technology (2006/42/EC).
